Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 150 clear perspex sheets |
| Price: | Negotiable |
| Packaging Details: | 1680kgs on one pallet |
| Delivery Time: | 11-15DAYS |
| Payment Terms: | T/T, Western Union, Western Union |
| Supply Ability: | 300 sheets PER DAY |

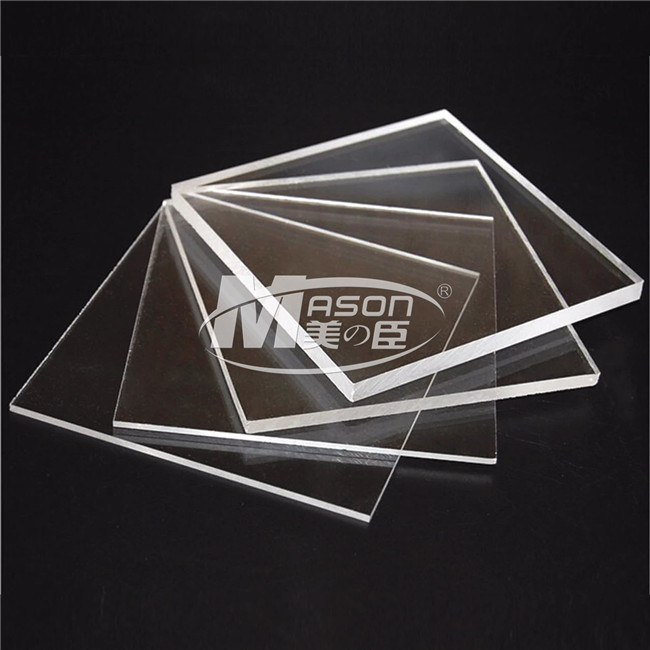

High Gloss 3mm-20mm 1220*2440 Mm Transparent
Plexiglass Acrylic Clear Perspex Sheet
Specification
Generally speaking, plexiglass sheet it means “clear acrylic sheet” Plexiglass comes in many forms such
as a clear cast sheet, the terms are often used interchangeably. Acrylic panels are sheets of acrylic that are
usually with rubber edge or edge-lit.Oftentimes the acrylic panels and acrylic sheets are used interchangeably.
Applications
Clear acrylic sheet are often used for POP displays,acrylic furniture,trade showpieces or even retail accessories
building signs, screens, windows, and more.
MASON CLEAR CAST ACRYLICPARAMETER
| Item | Test Result | Item | Test Result |
| Transmittance% | 93.7 | Tensile Strain at Break, Mpa | 5 |
| Rockwell Hardness(M) | 97 | Modulus of elasticity in tension, Mpa | 3.03 |
| Vicat Softening Temperature(1.8MPA) | 101 | Rockwell Hardness(R) | 124 |
| Coefficient of Thermal Expansion ℃-1 | 7.0*10-5 | Resistance to crazing in solvent | No crazing |
| Dimensional Stability(shrinkage) % | 1.9 | Charpy Non-notch Impact Strength KJ/M2 | 21.9(C) |
| Tensile strength, Mpa | 74.7 |
MASON ACRYLIC SPECIFICATION
| Code | Size with rubber edge | Size after cut edge |
| Q | 1250*1850mm | 1220*1830mm |
| L0 | 1250*2450mm | 1220*2440mm |
| L1 | 1270*2490mm | 1220*2440mm |
| L2 | 1310*2530mm | 1270*2490mm |
| L3 | 1350*2570mm | 1310*2530mm |
| Y | 1650*2600mm | 1610*2660mm |
| N | 1550*3050mm | 1510*3020mm |
| M | 2050*3050mm | 2010*3010mm |
Product Display
FOCUS ON ACRYLIC ONE STOP SOLUTION
Will not deteriorate after many years of service because of the inherent stability of acrylic resins
100% VIRGIN PMMA
QUALITY FIRST, DO A GOOD JOB IN EVERY PROCESS, IS OUR ETERNAL COMMITMENT TO CUSTOMERS.
Clear cast acrylic sheets are light weight and easily fabricated.
Clear cast acrylic sheets have a high molecular weight and uniform thickness.
Mason Acrylic Cast Clear Sheets are available in a wide range of thicknesses and sizes.
Cut to size option also is available.
PACKING DETAILS
Transparent acrylic perspex sheet suface protection with PE film or craft paper masking.
