Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 45SHEETS |
| Price: | Negotiable |
| Packaging Details: | Max 1500kgs on one pallet |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000KGS PER DAY |

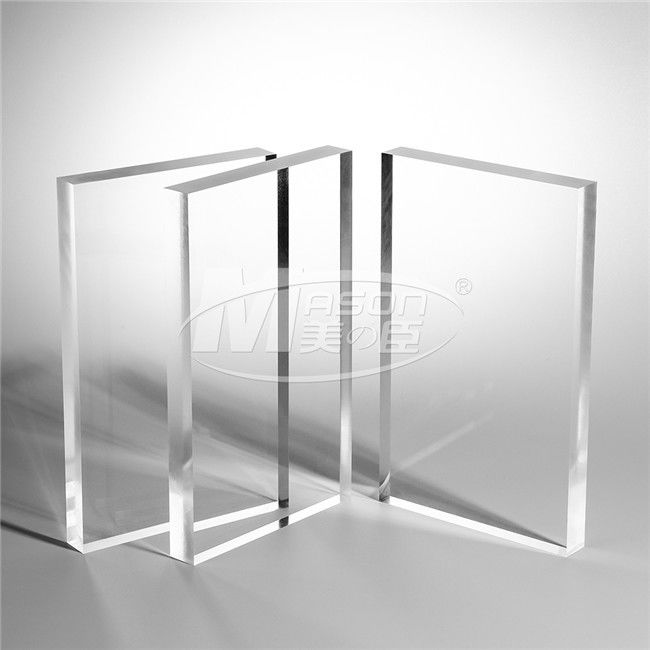

100% Virgin Material 3mm Transparent Plastic
Plexiglass Sheets
Information
Name: Cast Acrylic Sheet
Color: Clear
Grade: Optical
Specifications: 1220*2440mm;
2050*3050mm etc.
Parameter
Density: 1.2kg/m3
Thickness: 1.8-200mm
Transmittance: 93.4%
Raw Material: Lucite/Mitsubishi MMA
Description
Cast acrylic is one of the hardest thermoplastic sheet materials available and its attractive aesthetics remain
for longer than other plastic sheet materials.
Applications
From aquariums to architecture, boats to bathrooms, fashion to furniture and glazing to gliders and shop
signs to shelving. The list is almost endless. But don’t just take our word for it…
MASON CLEAR CAST ACRYLIC PARAMETER
| Item | Test Result | Item | Test Result |
| Transmittance% | 94.3 | Tensile Strain at Break, Mpa | 5.1 |
| Rockwell Hardness(M) | 97.1 | Modulus of elasticity in tension, Mpa | 3.03 |
| Vicat Softening Temperature(1.8MPA) | 101.2 | Rockwell Hardness(R) | 124.1 |
| Coefficient of Thermal Expansion ℃-1 | 7.0*10-5 | Resistance to crazing in solvent | No crazing |
| Dimensional Stability(shrinkage) % | 1.92 | Charpy Non-notch Impact Strength KJ/M2 | 21.9(C) |
| Tensile strength, Mpa | 74.7 |
MASON ACRYLIC SPECIFICATION
(The specification is 3mm plate, size will decreases with the increase of thickness)
|
Code |
Size with rubber edge |
Size after cut edge |
|
Q |
1250*1850mm |
1210*1820mm |
|
L0 |
1250*2450mm(Include Frosted) |
1220*2440mm(Include Frosted) |
|
L1 |
1270*2490mm |
1220*2440mm |
|
L2 |
1310*2530mm |
1270*2490mm |
|
Y |
1650*2600mm |
1610*2660mm |
|
N |
1550*3050mm |
1510*3020mm |
|
M |
2050*3050mm |
2010*3010mm |
Product Display
FOCUS ON ACRYLIC ONE STOP SOLUTION
Since 2008, MASON acrylic sheet has injected new vitality into acrylic industry, let more users experience
the charm of acrylic.
100% VIRGIN PMMA
With excellent resistance to the elements, cast acrylic performs well outside. No significant changes in
appearance are expected over 10 years.
PRODUCED BY CASTING TECHNOLOGY
MASON acrylic is produced by the famous brand MMA and matching all kinds of latest imported assembly
line production equipment as well as Pilkington glass molds imported from British.
The tolerance control of plates is very strict,and each plate needs to be adjusted and inspected three times
through the gauge.
PACKING DETAILS
With perfect after-sales service assurance system, we will arrange relevant personnel to solve at the first
time in case of quality problem in the product and never pass the buck.
